[ES] Hand pallet truck: Selection guide and usage tips
7min read
10/01/2023
RAJA® offers a wide range of robust and easy to use steel hand pallet trucks. From the simplest and most economical to the most robust and suitable for intensive use. But which hand pallet truck is best suited to the needs of your warehouse?
To help you make your choice, here are some questions to answer to help you choose your pallet truck. And more information that will help you get the most out of your pallet truck.
- What is the size of your pallets?
- How high does it lift?
- What is the load capacity?
- For what type of surface?
- Summary
- How to use a hand pallet truck?
- Tips on how to use a hand pallet truck
What is the size of your pallets?
To choose the right pallet truck for your needs, you should think about the type of goods your operators will be transporting on it.
This is important because the length of the pallet must be longer than the forks to prevent the ends of the pallet from sticking out and damaging other loads or pallets.
|
Pallet size |
Fork size |
Which pallet truck is right for me? |
| Mini pallets | Easy to handle with 80cm long forks | Pallet truck Short forks 80cm, 2500 kg |
| Standard pallets | Reliable high performance with 115cm long forks | |
| Long pallets | Long fork pallet truck 200cm | Pallet truck 200 cm long forks, 2000 kg |
How high does it lift?
A standard lift is around 20cm. For higher lifts it will be necessary to choose a special pallet truck, as shown in the following table.
|
Lifting |
Which pallet truck is right for me? |
| Standard lift 20cm | Short fork pallet truck 80cm, 2500 kg |
| 80cm high lift | High lift pallet truck |
For what load capacity?
The weight of the load to be lifted is an important element when choosing a pallet truck. In fact, if the machine lifts the goods to the desired height, it will avoid unnecessary strain for your operators and therefore reduce the risk of musculoskeletal disorders (MSDs) in your warehouse.
At RAJA® you will find pallet truck models capable of carrying up to 2500 kg of load.
|
Load |
Which pallet truck is right for me? |
|
Up to 1000kg
|
High lift pallet truck |
|
Up to 2000kg
|
Hand pallet truck 2000kg |
|
Up to 2500kg
|
Hand pallet truck 2500 kg |
For what type of surface?
The type of wheels is also a deciding factor when selecting one pallet truck model or another. This element allows you to determine the type of wheels that are best suited to the working environment.
- Polyurethane wheels do not stain and are suitable for sensitive and more delicate floors.
- We recommend: 2000kg RAJA® hand pallet truck, 2500kg RAJA® hand pallet truck, high lift pallet truck, 200cm long fork pallet truck, 2000kg or 80cm short fork pallet truck, 2500kg.
- The polyurethane wheels with rubber protection are quiet and ensure a better grip on industrial and slippery floors, in this case the ideal pallet truck is the 2500 kg hand pallet truck.
For the correct use of a pallet truck it is essential to train the operator. This will prevent overexertion and personal injury, as well as falls of goods and collisions with objects or other installations.
|
Types of castors |
Which pallet truck do I need? |
|
Polyurethane wheels with rubber protection |
2500 kg hand pallet truck |
|
Polyurethane wheels |
2000kg hand pallet truck |
¿ Which pallet truck ensures operator safety?
It is essential toprovide the company with mechanisation tools that facilitate the work and avoid risks to its employees.
For example, a pallet truck allows access to goods without bending down, but there are other risks and considerations to take into account, so make sure that your pallet truck has:
- A safety valve, to indicate possible overloading
- A safety system tobrake or lift loads
- A load stabilisation system, especially for high lift pallet trucks
- A multi-position tiller to adapt the machine’s inclination to the slope of the ground during travel
These features, in addition to the general ergonomics of the pallet truck, will allow your operators to handle pallets in complete safety and in the best possible conditions.
In addition, operator training is essential for the correct use of a pallet truck. Thanks to this, overexertion and personal injury will be avoided, as well as falls of the goods and collisions with objects or other installations.
In short…
|
Pallet truck type |
Characteristics |
Details |

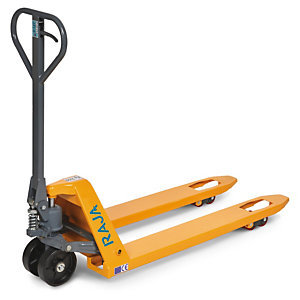

| Pallet truck 2000kg
|
For standard pallet sizes
Standard lift 20cm For loads up to 2000kg Polyurethanewheels Very economical |
High performance: steel hydraulic pump with safety valve in case of overload. 3-position tiller (lift-neutral-lower).
Easy to handle: 18cm diameter steering wheels. Double inlet rollers Weight: 65kg |

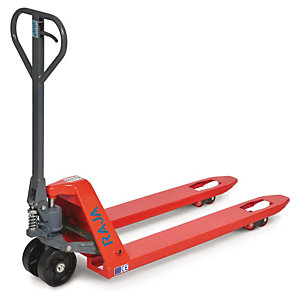

| RAJA 2500kg pallet truck
|
For standard pallet sizes
Standard lift 20cm For loads up to 2500kg Polyurethane wheels |
Reliable and high performance: Cast iron pump with hydraulic lifting system and safety valve. Tiller with 3 positions (lift-neutral-lower).
Easy to handle: 18cm diameter steering wheels. Double polyurethane rollers at the front for easy entry onto pallets. Weight: 70’5kg |

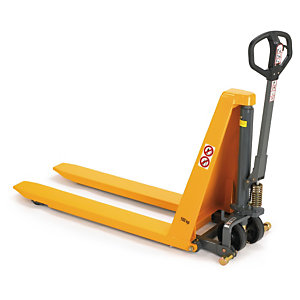

| High lift pallet truck
|
For standard pallet sizes
80cmhigh lift For loads up to 1000kg Polyurethane wheels |
Easy to use: Quick lift. Hydraulic lifting system.
Robust: Safety system preventing the pallet truck from moving from a lifting height of more than 400mm. Weight: 125kg |

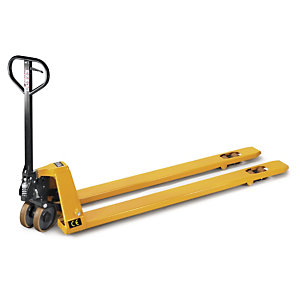

| Pallet truck long forks 200 cm, 2000kg
|
For long palletsize
Standard lift 20cm For loads up to 2000kg Polyurethane wheels |
High manoeuvrability: 18cm diameter steered wheels and double front wheels mounted on self-lubricating bearings.
Easy to manoeuvre: Manoeuvring tiller with 3 positions (lifting, neutral and lowering). Robust: steel fork and chassis. Weight: 96kg. |

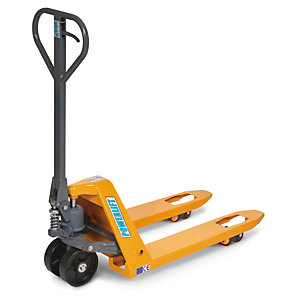

| Short fork pallet truck 80cm, 2500kg
|
For small palletsize
Standard lift 20 cm For loads up to 2500kg Polyurethane wheels |
Practical: 80cm forks facilitate handling in lifts, forklifts and small trucks.
Reliable and high performance: Hermetic hydraulic pump with safety valve. Manoeuvring tiller with 3 positions. Steering wheels of 18cm diameter and double front wheel. Robust: Steel fork and chassis. Weight: 63kg |
How to use and assemble a hand pallet truck?
We explain how to assemble a 2500kg hand pallet truck and how to use it:
And how the assembly of a 200kg hand pallet truck works and how to use it:
Tips on how to use the hand pallet truck:
- Do not use the pallet truck in places with steep ramps or unstable or uneven surfaces.
- Respect the maximum capacity indicated on the pallet truck.
- Reduce the load if it requires more effort than the manoeuvrability of the operator who is going to use it and avoid overexertion.
- If you are going to use the pallet truck on a forklift or lifting platform, make sure beforehand that it is possible to use it and that it supports the load capacity.
- Make sure that the load is perfectly balanced and stable, and make sure that it remains so throughout the entire route.
- Follow the maintenance rules indicated on the pallet truck to ensure its correct operation over time.
- Signpost in your warehouse where to park the pallet trucks and visibly remind them of their conditions of use.
If you still have any doubts about choosing the most suitable pallet truck for your business, do not hesitate to contact us: pedidos@rajapack.es or 900 877 025. Our specialists will advise you on the best choice and discover our full range of pallet trucks at RAJA®!
