Selection guide for container trolleys and tall trolleys

In this selection guide we highlight 2 types of warehouse rolling stock: roll containers and high rise trolleys.They have much more in common than just their wheels.They are an indispensable tool for many warehouse workers for moving large quantities of crates or bins at once.Ideal for saving time.Which trolley or roll container will do the job for you? Take a look at all the possibilities below.

1. Roll-container or trolley: which to choose?

► High trolleys

A high trolley with trays is actually an improved version of the standard trolley. However, a high trolley has more trays. Ideal if your warehouse worker wants to move a lot of boxes or bins at once. They are mainly used for internal transport,

i.e. within the

same warehouse. There are also trolleys with trays that are slightly inclined (up to 15°): this makes loading and unloading easier. Finally, there are variants with a grid around the frame. These ensure that your goods do not fall to the ground. This last variant already closely corresponds to what we call a “roll-container”.

Standard model	With inclined wooden trays	With closed sides
(1 ) Wheels with brakes(2) Handles	(1) Wheels and central foot brake(2) Handles(3)tilting shelves	(1 ) Wheels with brakes(4) Choice of 2 or 3 closed sides + roof and lockable door
Max. load < 600 kg	Max. load < 400 kg	Max. load < 500 kg
L 100 x W 60 x H 155.2 cm	L 180.5 x W 65 x H 185.5 cm	L 123 x W 62 x H 147.5 cm
4 or 5 wooden trays (max. load 90 kg)	4 wooden trays (max. load 80 kg)	Optional trays (max. load 80 kg)
Tubular steel frame	Tubular steel frame	Tubular steel frame

► Rolls Containers

What about roll containers? This rolling stock is characterised by 2 things:

firstly,

the metal panels around the trolley. These reduce the risk of your parcels, crates or bins falling off. Secondly, there is the galvanised steel structure of the container. This allows you to use it both indoors and outdoors, making it ideal

for

external transport by lorry, for example. Good to know: roll containers can also be used without a shelf. This makes it much easier to move bulky goods. Large crates that you can’t fit between 2 shelves are no longer an obstacle

Standard volume	Large volume	Anti-theft
With textile strap to keep your products in place	With extra large storage space	With mesh roof and lockable door (padlock optional)
Max. load < 500 kg	Max. load < 500 kg	Max. load < 500 kg
L 72.5 x W 80.5 x H 188 cm	L 120 x W 80 x H 192 cm	L 71.5 x W 80.5 x H 192 cm
Optional shelf (max. load 150 kg)	Optional shelf (max. load 150 kg)	Optional shelf (max. load 150 kg)
Electrogalvanised steel wire frame	Electrogalvanised steel wire frame	Electrogalvanised steel wire frame

At the beginning of the article

2. Benefits and uses

► Easy to move

A first advantage of high trolleys and roll containers is their manoeuvrability.They come with 2 fixed and 2 swivel wheels by default.This allows you to really roll them anywhere.If you put them next to each other they also fit perfectly in a truck

. Astuces de RAJA

Tip:

it’s

better to push the roll container rather than pull it.Pushing is much easier, safer and less painful for your back.

► Reliable

This rolling stock is made with a solid steel frame. You can be sure that your products are well protected against impact. Unlike a pallet truck, for example, nothing is motorised, so it requires less maintenance.

► Safe

L’aspect “sécurité” est particulièrement important pour les rolls-conteneurs. La structure de la cage métallique permet de maintenir vos marchandises ou vos bacs en place. Surtout lorsque vous optez pour un conteneur à 4 côtés, il n’y a plus de risque que vos marchandises tombent du conteneur. Si vous travaillez avec des produits coûteux, choisissez un roll-conteneur avec une porte verrouillable. Tout ce dont vous avez besoin est un cadenas. Il est ainsi facile de garder vos produits sous clé dans votre entrepôt. Si vous disposez d’un roll-conteneur ne comportant que 2 ou 3 côtés, vous pouvez, si besoin, le filmer complètement à l’aide d’un film étirable. Simple mais efficace !

Astuces de RAJA

Astuce : toujours mettre les marchandises les plus lourdes au fond. De cette façon, vous maintenez une stabilité maximale pour votre matériel roulant.

Au début de l'article

3. Rolls containers and accessories

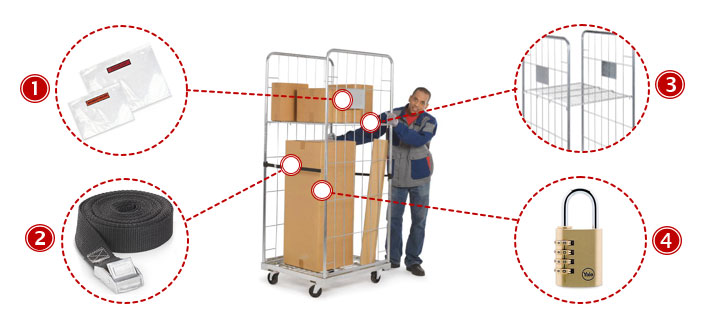

With the extras below, you can get even more out of your roll container. As a one-stop shop, RAJA is the perfect place to buy all your warehouse supplies in one go: cheaper, easier and faster!

[1] Document pocketsandlabelsallow you to easily identify your load.
[2] Tie-down strapsstackable and lockable**: allow you to securely fasten a load.
[3] Extra shelves[3] : make even better use of the space available inside your roll container.
[4] Padlocks
: seal a 4-sided roll container completely for added security. Other containers can be wrapped in stretch film.

In many logistics centres and warehouses, trolleys and roll containers are combined with (stackable) bins. With these bins, you can move a much larger quantity of small products in one go. Convenient, isn’t it? The bins below are compatible with RAJA trolleys and roll containers:

European stacking bin* Stackable and palletizable.	European stacking bin with integrated lidsafe storage	European stacking bin with perforated sidesno risk of humidity
Stackable european bin in 5 coloursthe widest choice	. .	Stackable european bin with front openingeasy access to contents
Shuttle binfoldable to save space after use	Foldable binfoldable to save space after use	Multi-purpose plastic cratestackable and hermetically lockable
